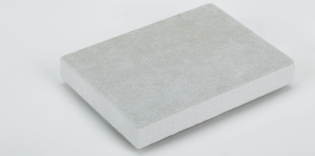

Knauf Fireboard
Knauf high-performance fireboard is kind of completely non-inflammable board specially designed for using in outer pack fire system without frame. It can be directly installed on steel structure and column without requiring frame and the space between boards can be directly fixed with fireboard fastening screw.
Applicable scope:
- Beam of steel structure, outer pack fire system of column.
- Outer pack fire system of vent pipe and pipeline.
-Ceiling system, partition system and veneer wall system with higher fire-resistant requirement.
Features:
- High fire resistant, adopt glass fibre cloth as covering material, the glass fibre content in board core is 5-6 times that of fireshield plasterboard and the 25mm thick high-performance fireboard can provide 2-hour fire protection.
- High density and strength of board core ensures the plasterboard will not deform when bearing strong impact.
- The construction is fast and convenient. The space between boards is directly fixed with screw, requiring no additional frame.
Product specification:
|
Thickness(mm)
|
20.0
|
25.0
|
32.0
|
|
Width(mm)
|
900
|
900
|
885
|
|
Length(mm)
|
1800
|
1800/2200
|
1800
|
|
Piece
|
40
|
32
|
26
|
|
Area(m2)
|
86.4
|
69.1
|
56.2
|
|
Weight(t)
|
1.39
|
1.39
|
1.35
|
