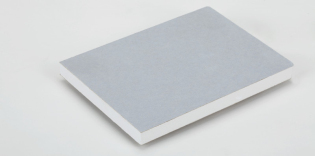

Knauf Soundshield



Knauf soundshield is a kind of high-density plasterboard specially designed for places with high requirement for sound insulation. The covering paper is blue. Adoption of Knauf soundshield can ensure that the partition reaches the best sound insulation effect with least layers of plasterboard.


Applicable scope:
- It is required that the partition thickness shall be as small as possible when the sound insulation performance reaches the maximum value.
- Partitions in extremely noisy places like operation room, multifunction hall, KTV compartment. The sound insulation performance shall be no less than 55dB.
- Ceiling with high requirement for sound insulation.
- Not applicable to places with the temperature over 50℃ and relative humidity over 90%.


Features:
- Special high-density board core design can absorb more sound energy to increase sound insulation performance.
- The partition thickness is only 100mm when the sound insulation performance reaches 52dB.
- The sound insulation performance of partition composed of Knauf soundshield and Knauf MW soundstud increase by 3-5dB in average compared with that of partition composed of Knauf common plasterboard and Knauf C-shaped stud.


Product specification:



Thickness
9.12mm/15mm
Width
1200mm
Length
2400mm
