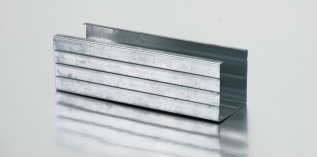

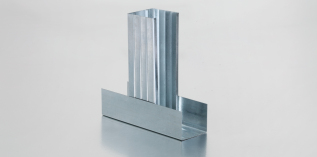

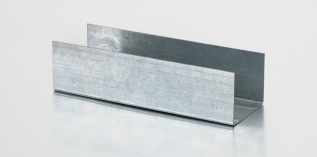

Partition Framing
Knauf partition framing, taking domestic high-quality continuous hot-galvanized steel strip as raw material, is a kind of high-quality product manufactured by applying advanced technology and rolling and cold bending process. It belongs to Europe and America stud system with simple structure and no accessories.
Applicable scope:
- Widely applied in inner partition systems of various commercial and civil buildings like shopping mall, hotel, office building, residential building, etc.
- Stud and stud arrangements with different specifications can form lightweight partitions with different thickness and height according to requirements for fire prevention, sound insulation and wall height.
- Simple processing of stud and adoption of simple construction can form firm and beautiful door frame and window frame structure.
- By bending lateral edgeways stud, arranging vertical stud and adopting special installation methods of plasterboard, beautiful curved wall can be created.
- It can be applied in lift shaft and pipe well system in combination with reinforcing measures by steel structure.
Features:
- High galvanization content for rust prevention treatment and adoption of high-quality continuous hot galvanizing steel strip as raw material make the double-sided galvanization content far exceed international standard high-class product by 120g/m2
- 50mm wide wing design makes it easier to fasten screw and reduce joint cracking
- Rib reinforcement design for lateral wing increases the rigidity of stud line and reduces deformation, and can reach required rigidity without coherence frame in tradition lightweight steel stud partition system.
- Artful inequilateral design of two wings offers convenience for pair buckle and extending of frame. It is applicable to parts requiring reinforcement, like door frame.
- Introduce complete Italy production line with high accuracy; design geometrical size according to Chinese architectural characteristics and standards.
- The rearward face of stud has “H” opening in every certain distance, which offers convenience for laying of hidden pipelines without affecting strength.
Product specification:
|
Stud specification (mm)
|
Length (mm)
|
Weight (kg/m)
|
Package (pieces / bundle)
|
|
QC50*50*0.6
|
3000/4000
|
0.764
|
128
|
|
QC75*50*0.6
|
3000/4000
|
0.882
|
120
|
|
QC100*50*0.6
|
3000/4000
|
0.912
|
80
|
|
QC100*50*0.7
|
3000/4000
|
1.006
|
80
|
|
QU50*35*0.6
|
3000/4000
|
0.624
|
128
|
|
QU75*35*0.6
|
3000/4000
|
0.740
|
120
|
|
QU100*35*0.7
|
3000/4000
|
0.867
|
80
|
Above are laboratory data, only for reference
